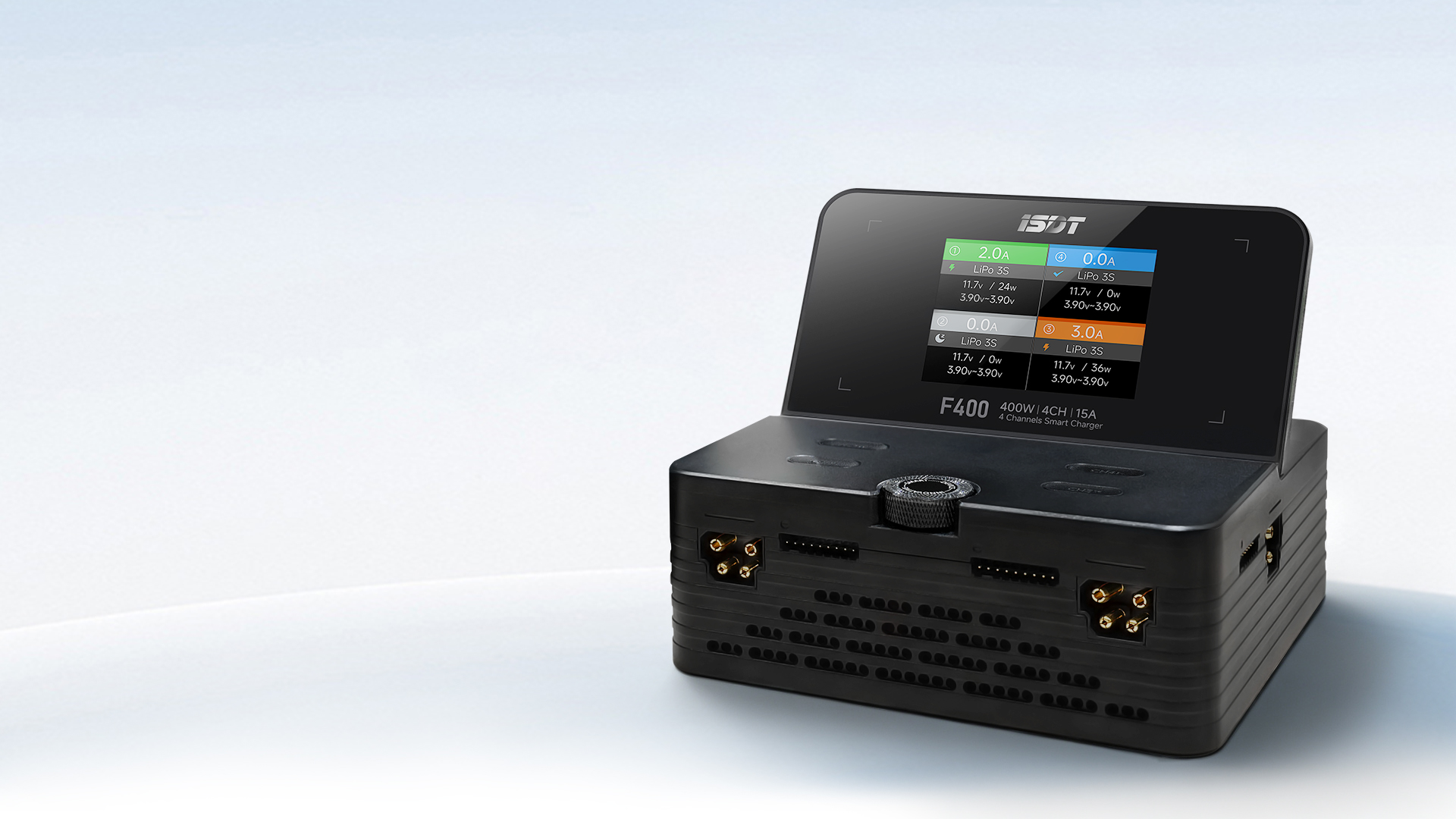

AC/DC 4-channel charger
400W | 4CH | 15A
Maximize efficiency through innovation
AC/DC
Dual Mode Input
Four Independent
Channels
400W+400W
High Power Output
Mobile App
Control
Integrated
foldable display
400W+400W
High total power output
AC 400W/DC 400W – powerful performance
not just an AC charger; but also requiring no additional
power supply and supports output to multiple devices.

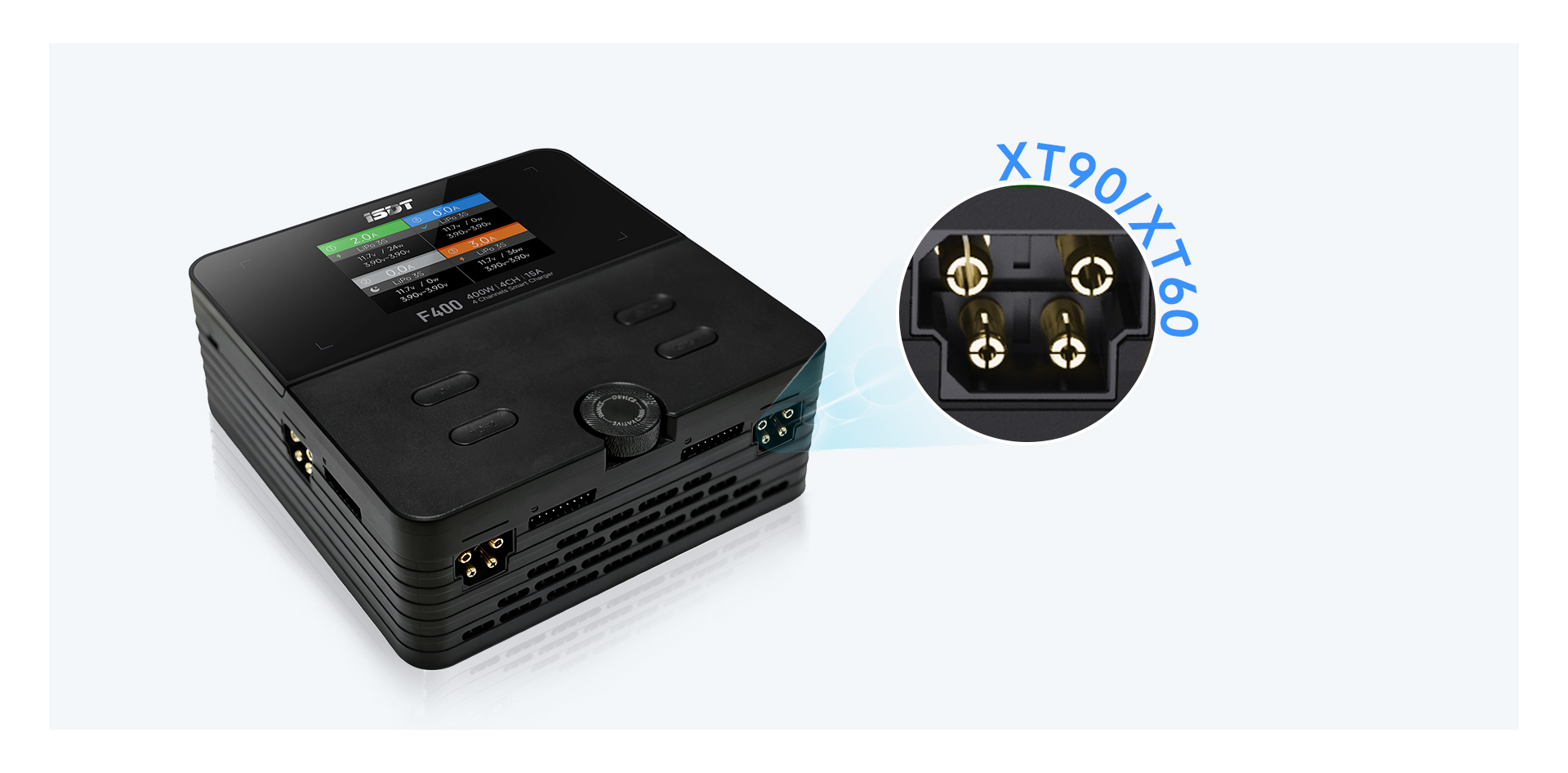

Combined
Dual-Spec Connector
Features a combined integrated power interface with wide compatibility.
XT60 standard batteries and XT90 high-current, high-power batteries can be plugged in and unplugged directly.
(Note: XT60 and XT90 cannot be connected to the same port at the same time.)

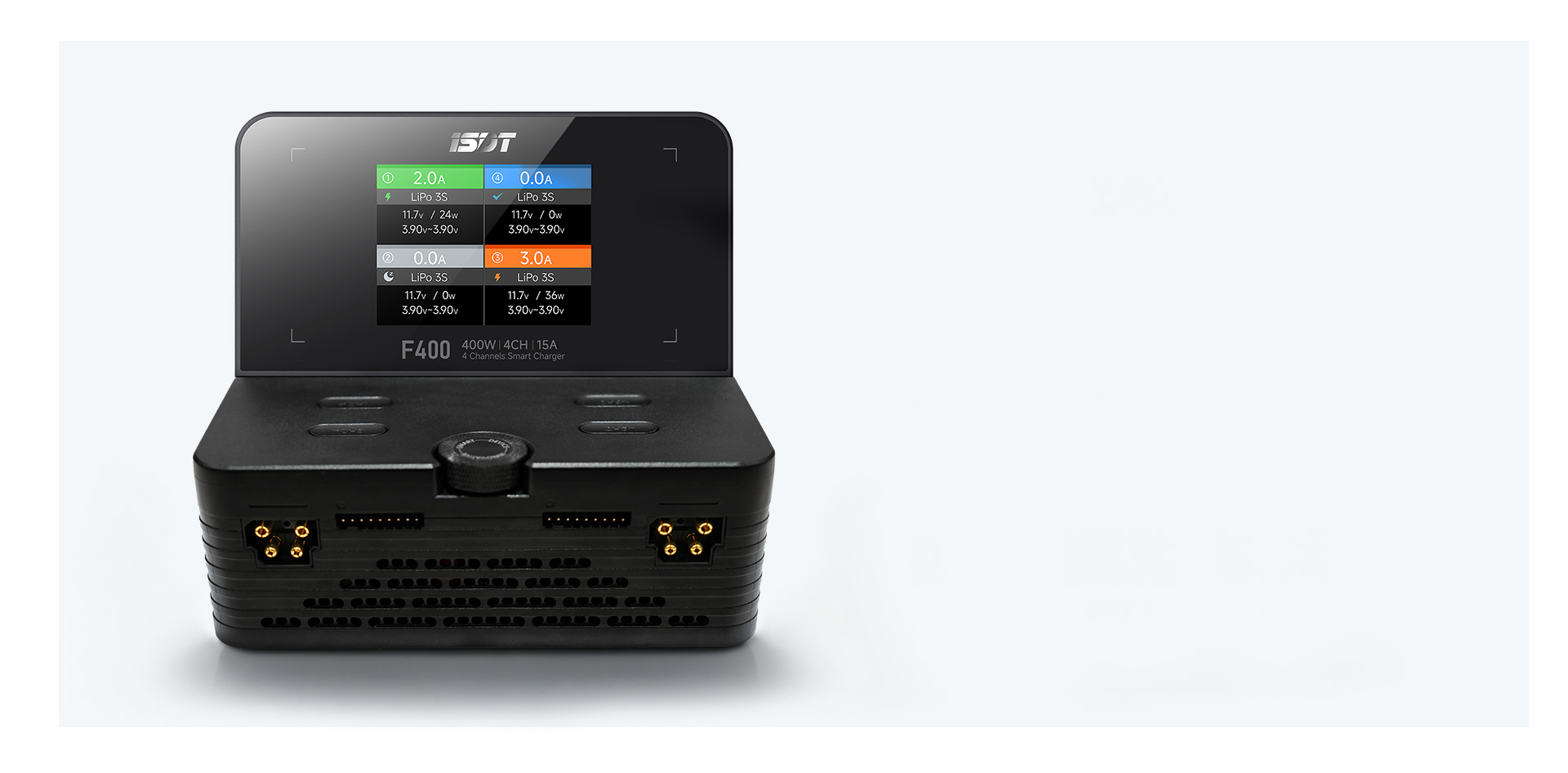

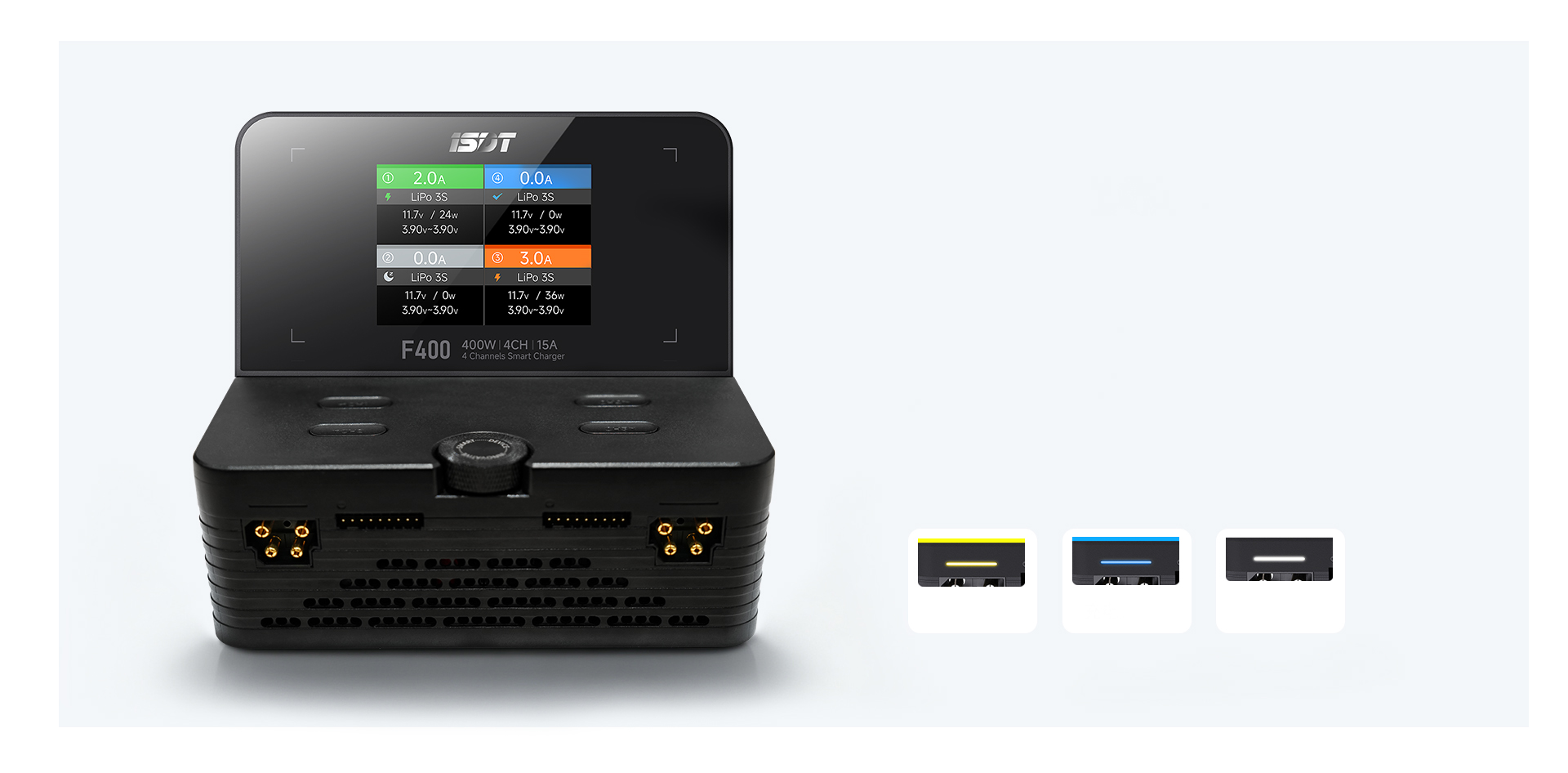

Multi-Channel
independent Status Indicator Lights
Know the charging status at a glance
Charging / full / fault visualized
Quickly identify device status from a distance
without needing to stare at the screen to read data.
Charging
Charging
Complete Standby
Complete Standby

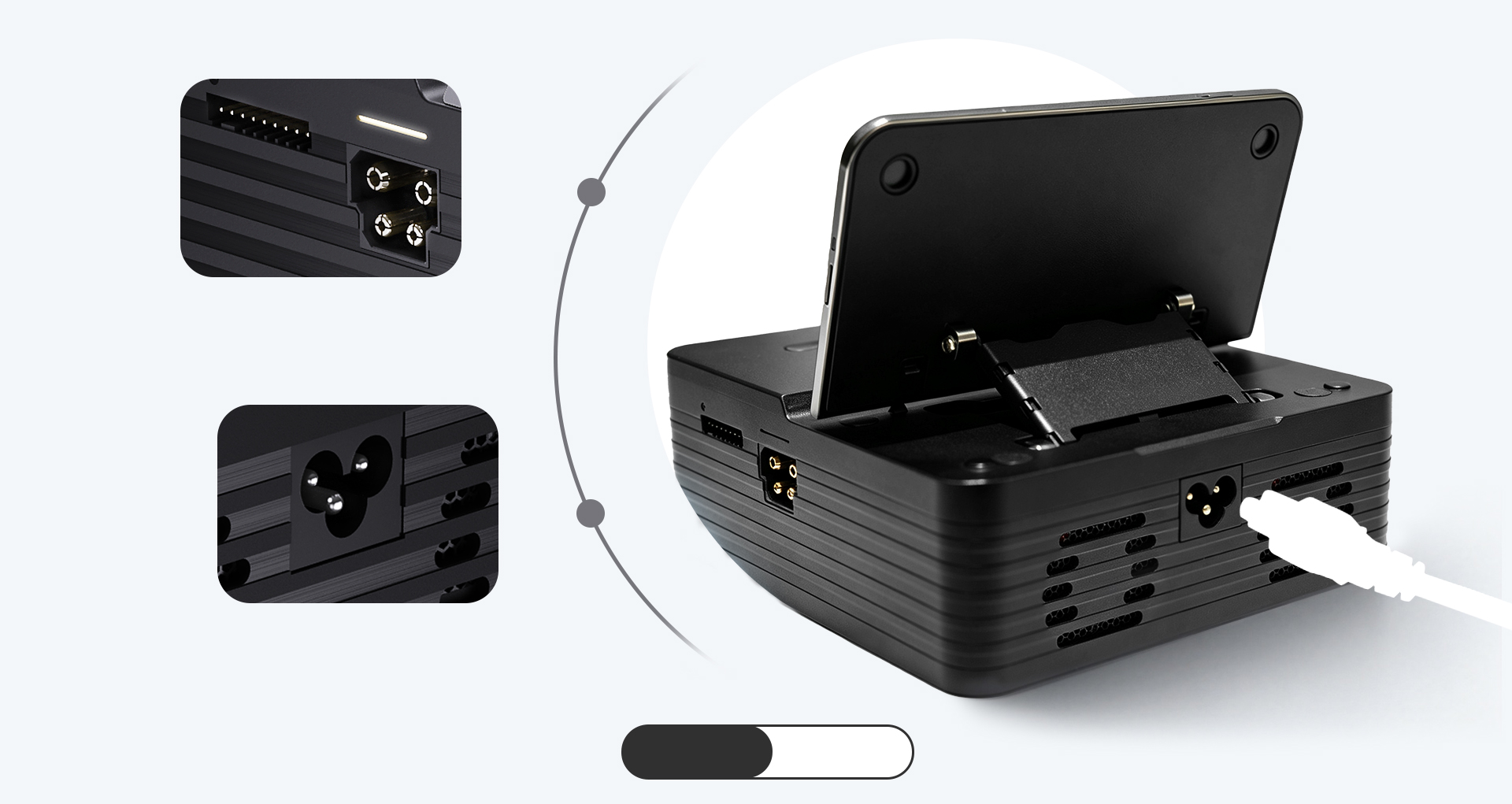

AC/DC Dual-Mode Input
Supports independent AC (alternating current) and DC (direct current) input (not simultaneously). Connect to an AC power supply indoors,
or use a portable DC power source outdoors — flexible charging, indoors and outdoors, without site restrictions.

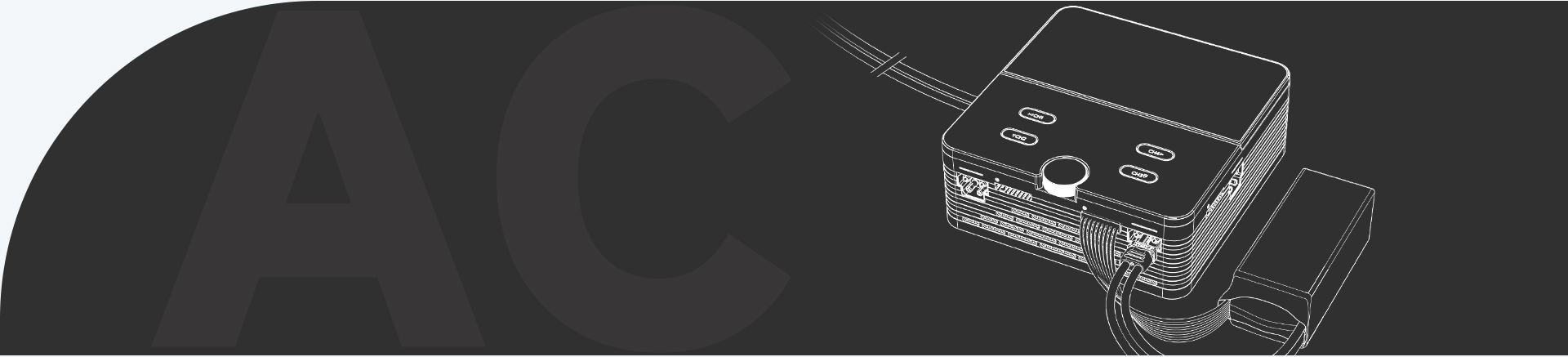

AC Input
Connect the included power cable to
the charger or an appropriate power source.

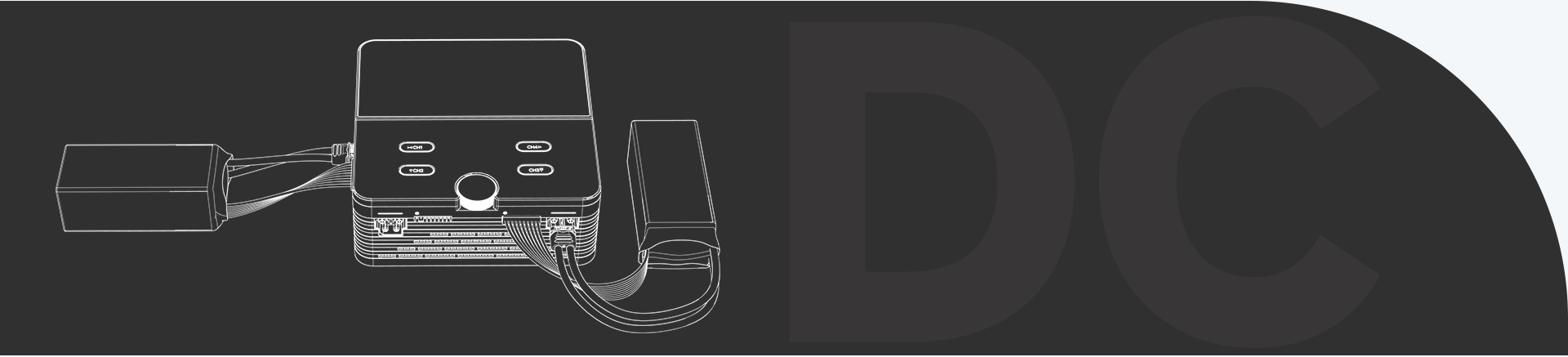

DC Input
Connect any channel
port to supply power.

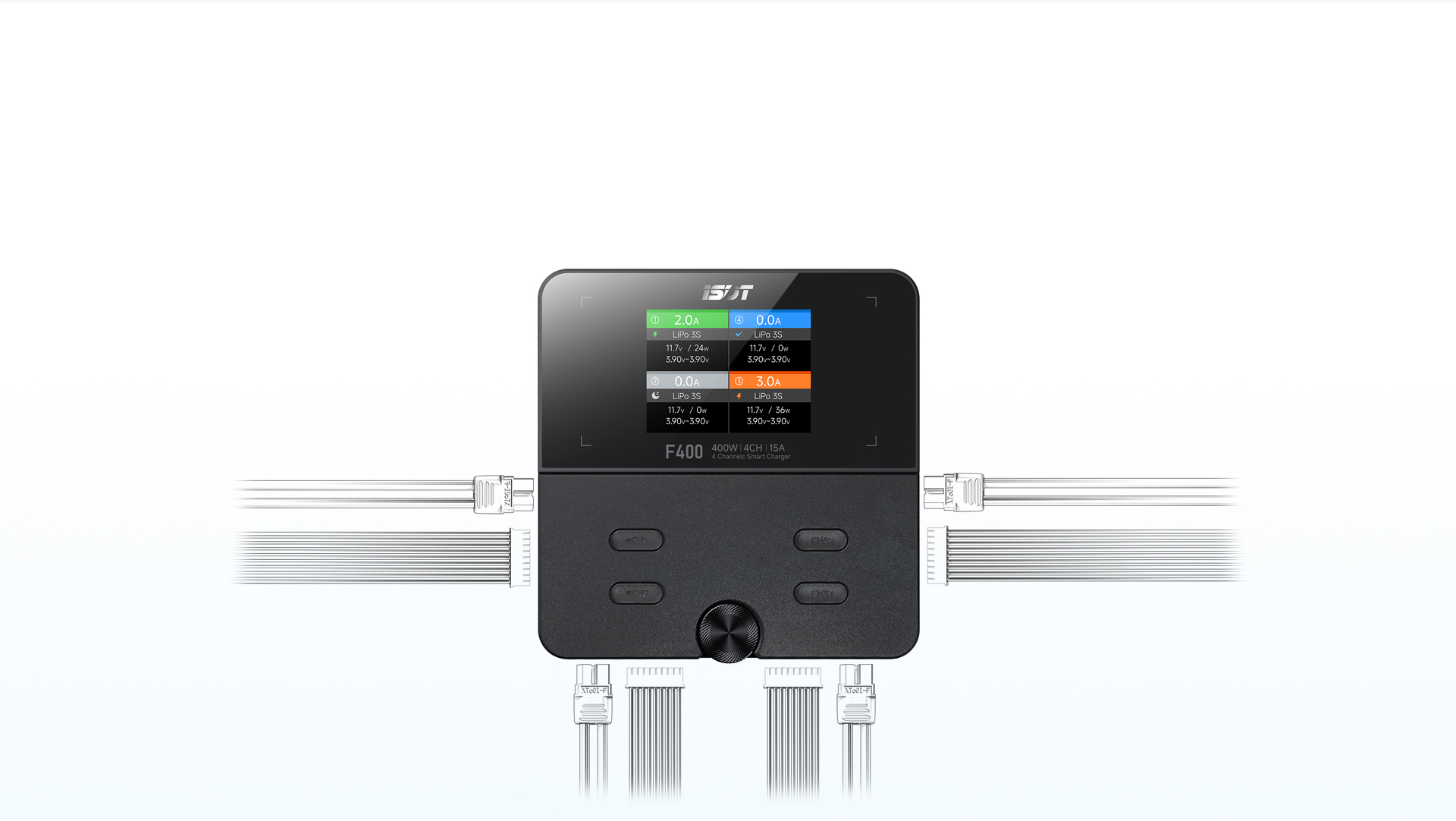

Independent Quad-Channel Design
Each of the four channels can be configured independently, with a maximum single-channel current of up to 15 A and an adjustable voltage range of 1.0 V to 34.0 V. In constant-current mode, fine-tuning is performed in 0.1 V steps, enabling precise and dense voltage regulation.
Supports simultaneous charging of battery packs with differing series counts, capacities, and chemistries: LiPo / LiHV / Li-ion / LiFe / NiMH.

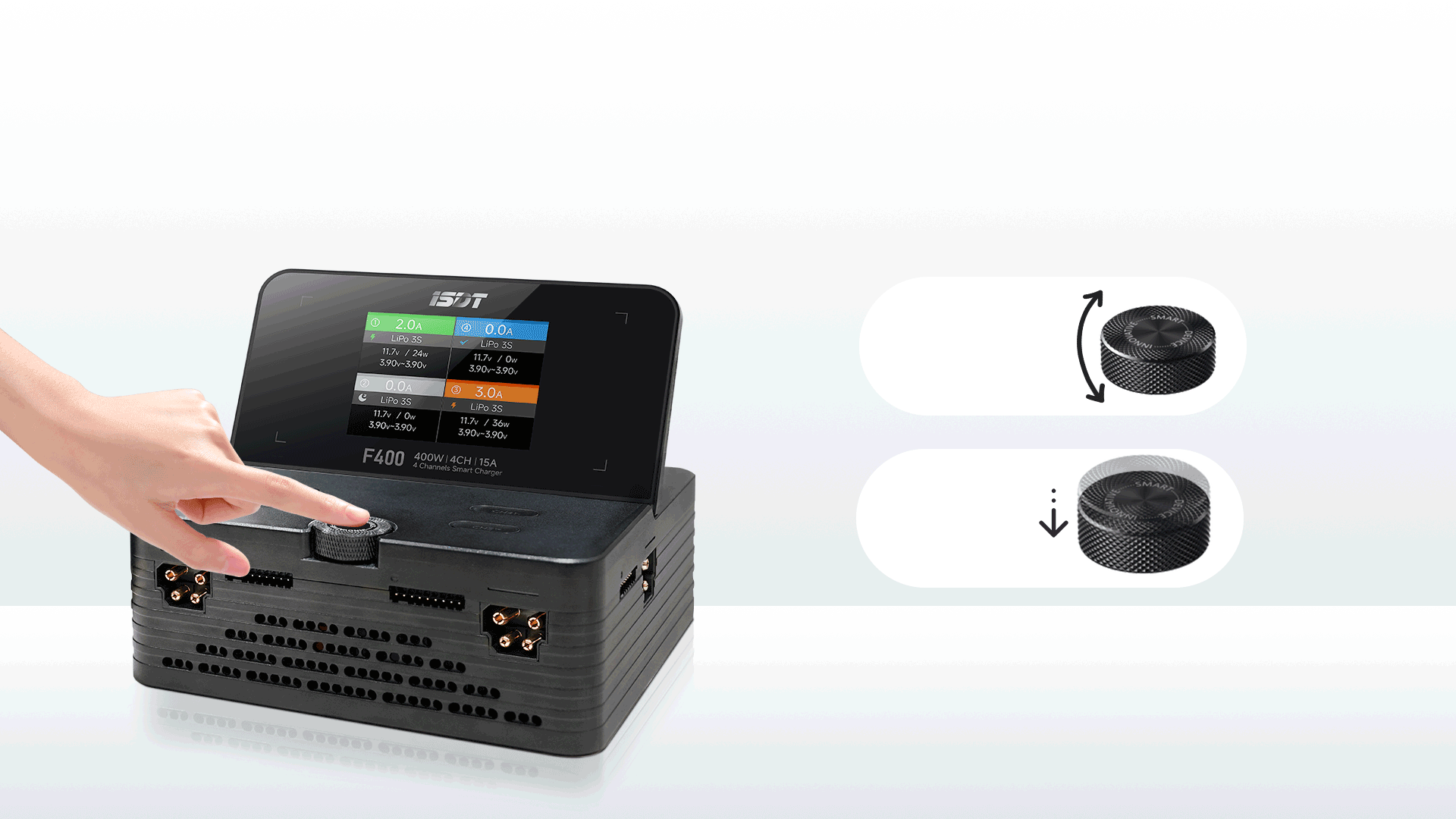

One-key Shuttle Knob
An elegant and natural shuttle experience that replaces hard-to-reach button presses.
One touch, complexity simplified.
360°
rotatable
left / right
left / right
Press
long press
short press
short press

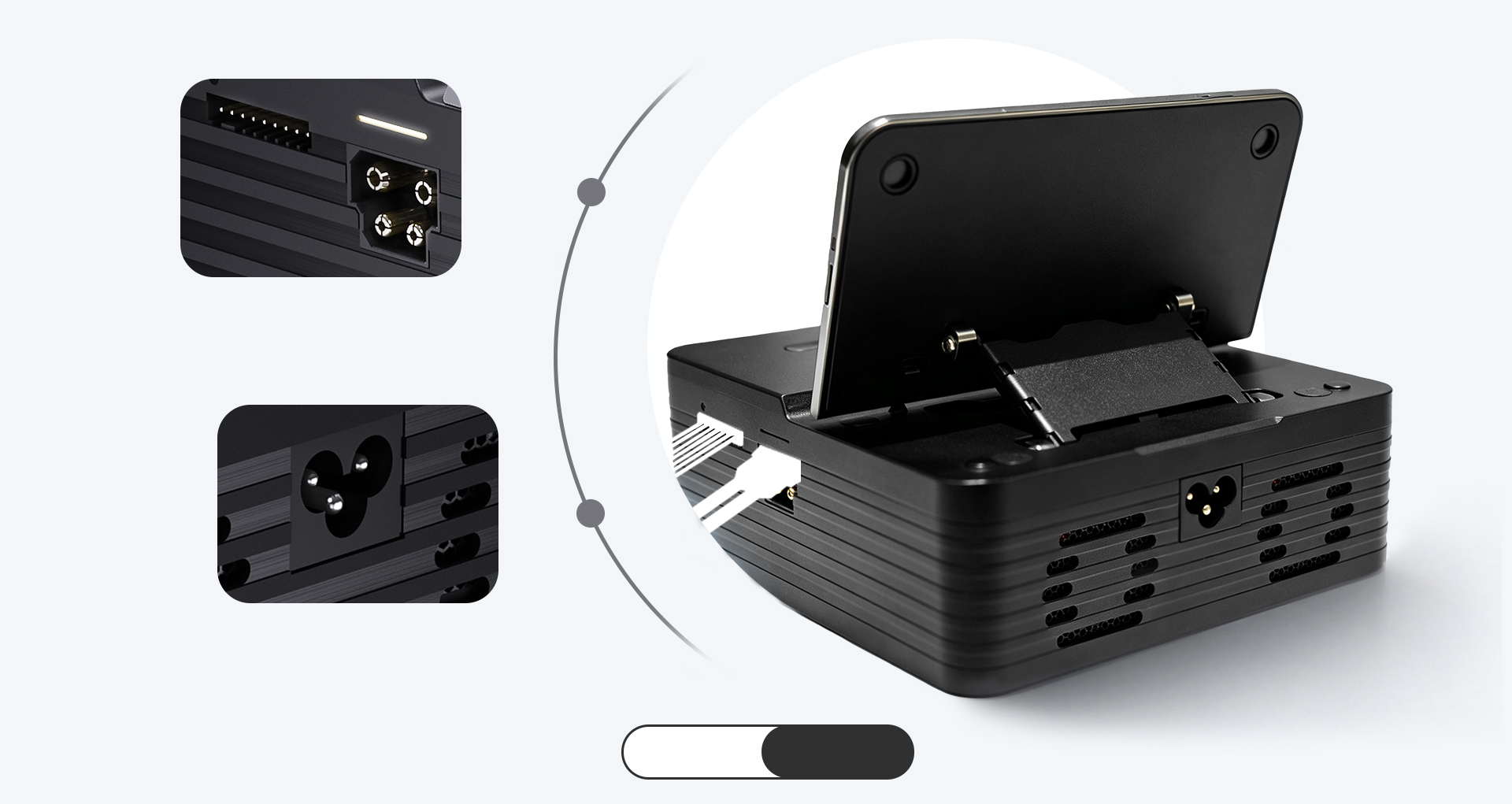

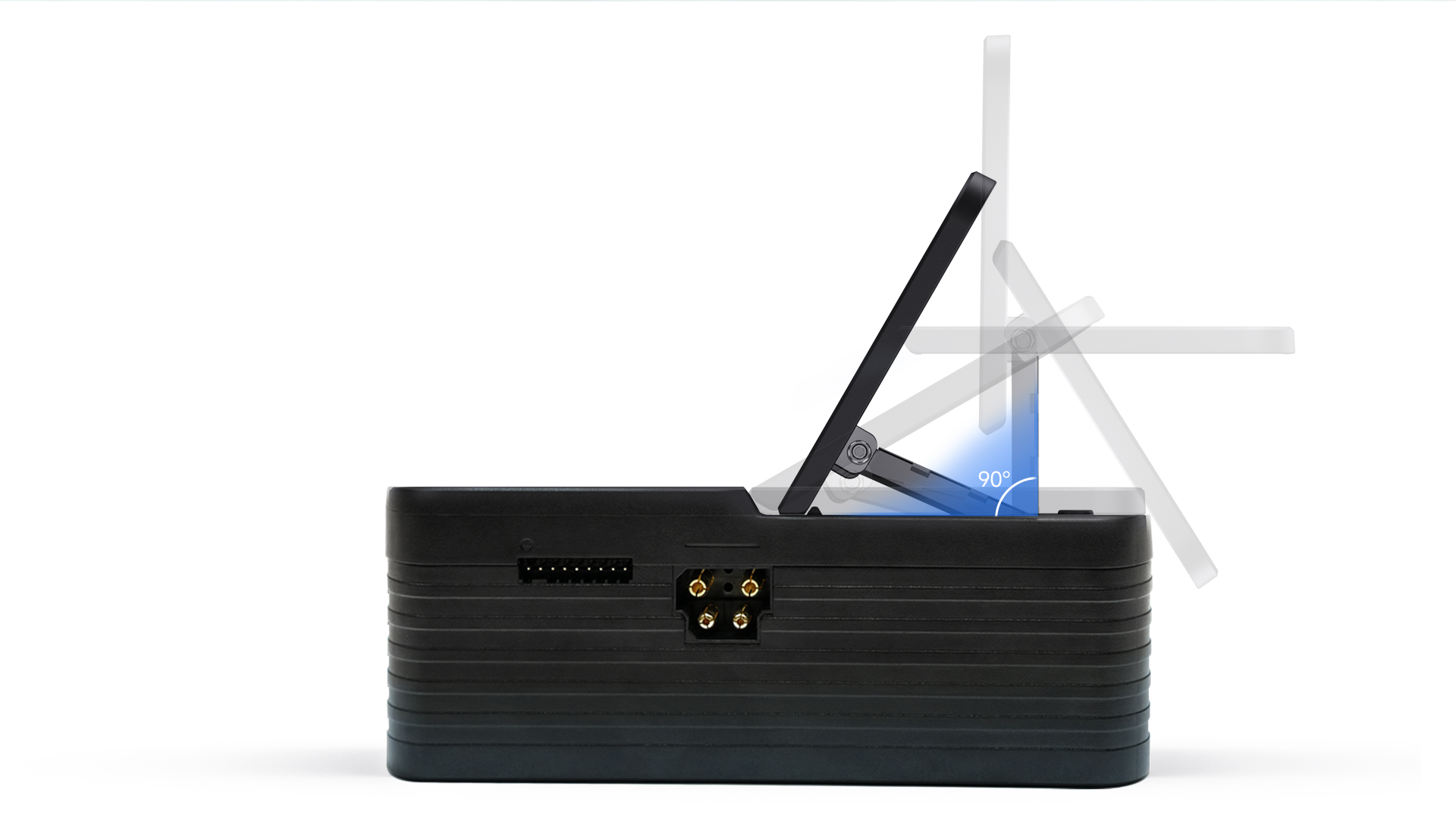

Integrated Spindle Structure
The wear-resistant metal rotating shaft ensures smooth flipping,
The storage compartment features a seamless, tight-fitting closure,
and the screen supports multi-angle suspension
to accommodate various viewing perspectives.

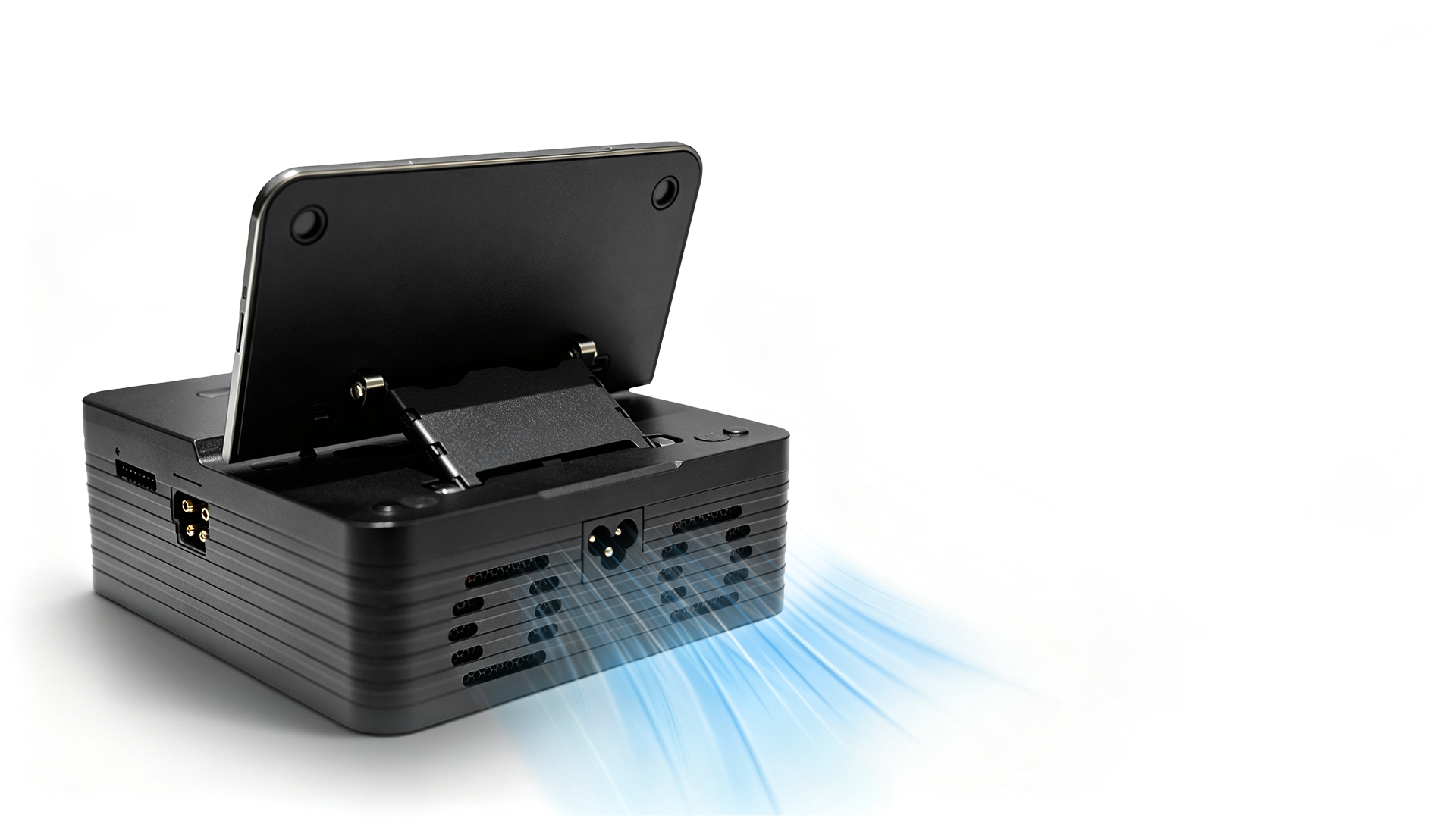

Intelligent Duct
Design
Intelligent fans adjust airflow through ducts
using a forced-air system,
actively controlling air circulation

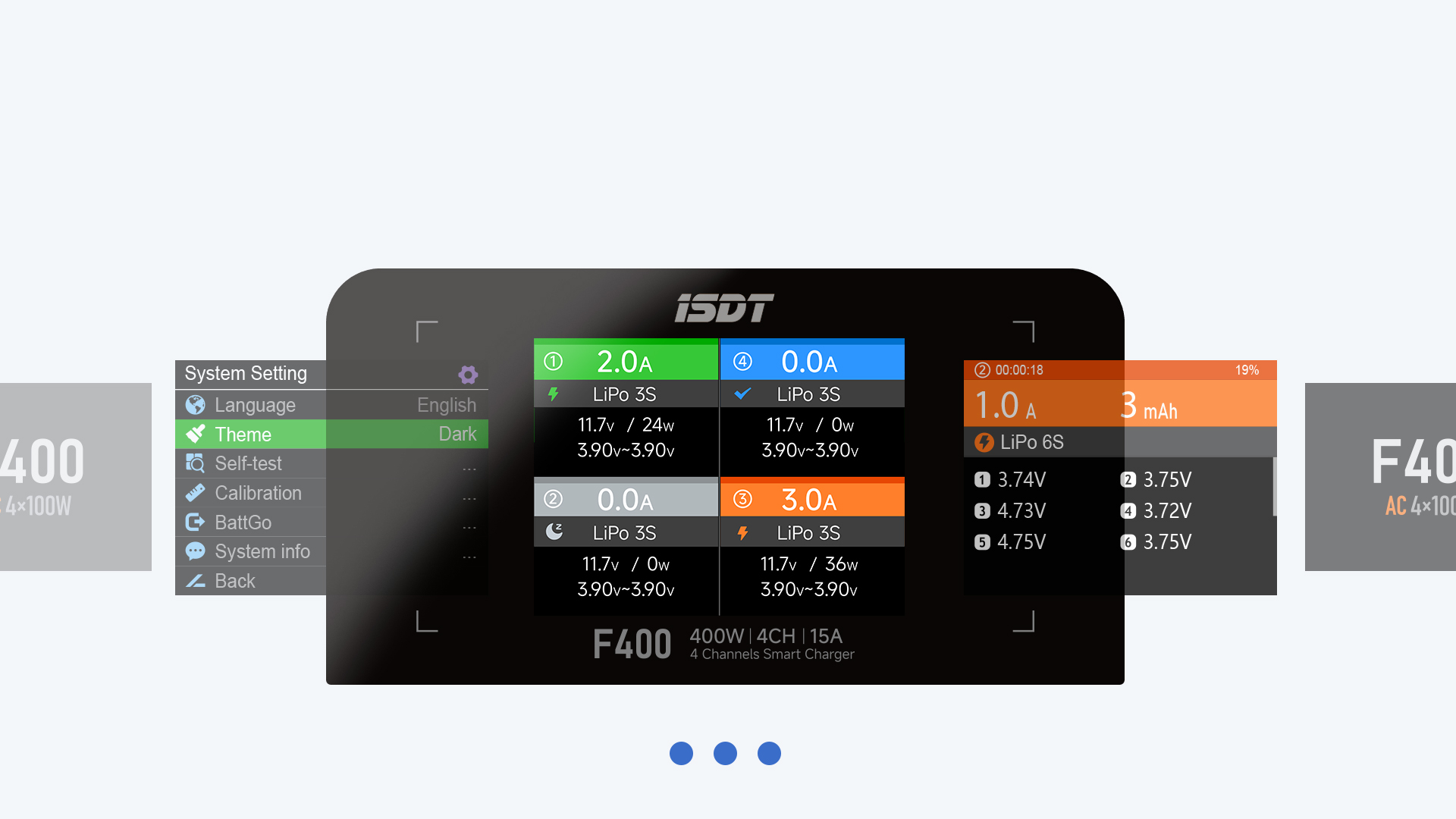

All-in-one black glass screen with full adhesion, offering intuitive control at a glance.
3.4-inch high-brightness IPS color display with wide viewing angles.
Multi-channel charging and data synchronization for real-time screen monitoring, enabling easy device status oversight.

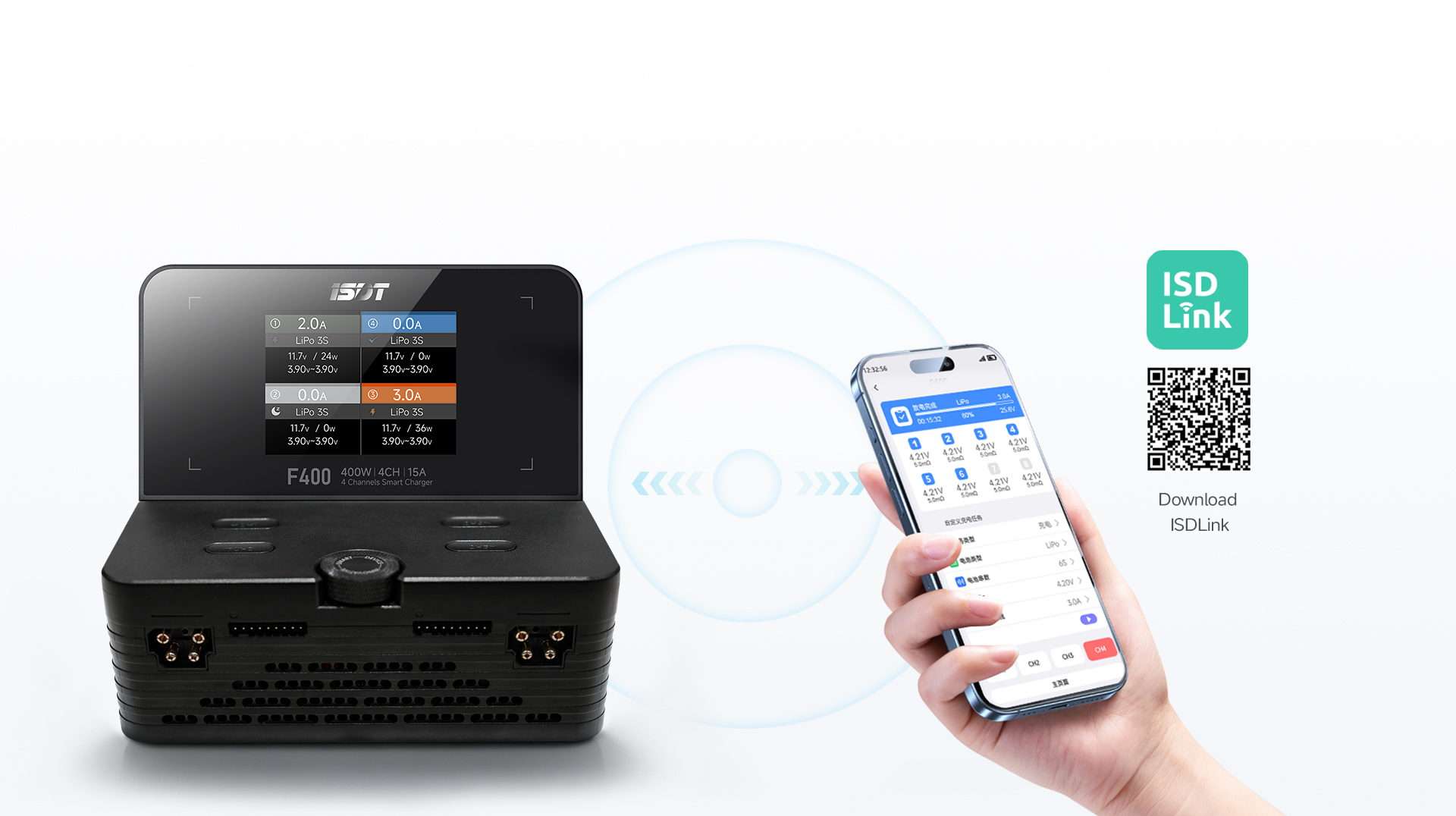

Multiple operation methods, free from wired constraints
Connect to mobile devices via Bluetooth to control charger tasks or view detailed parameters of each channel in the „ISD Link“ app.
Preset charging tasks in the app as well,replacing tedious charging steps with one-touch charging.
OTA upgrade – at your fingertips.
Specifications
Model:
Input Voltage Range:
Output Voltage: Charging Current: Discharging Current: Max Charging Power: Max Discharging Power: Supported Battery Types & Cell Count:
Balancing Current: Operating Temperature: Dimensions: Weight:
Output Voltage: Charging Current: Discharging Current: Max Charging Power: Max Discharging Power: Supported Battery Types & Cell Count:
Balancing Current: Operating Temperature: Dimensions: Weight:
F400
100-240V ~ 5A 50/60Hz;
34V 15A
DC 4-34V
0.5-15A x 4(CH)
0.2-3A x 4(CH)
AC 400W / DC 400W
20W x 4

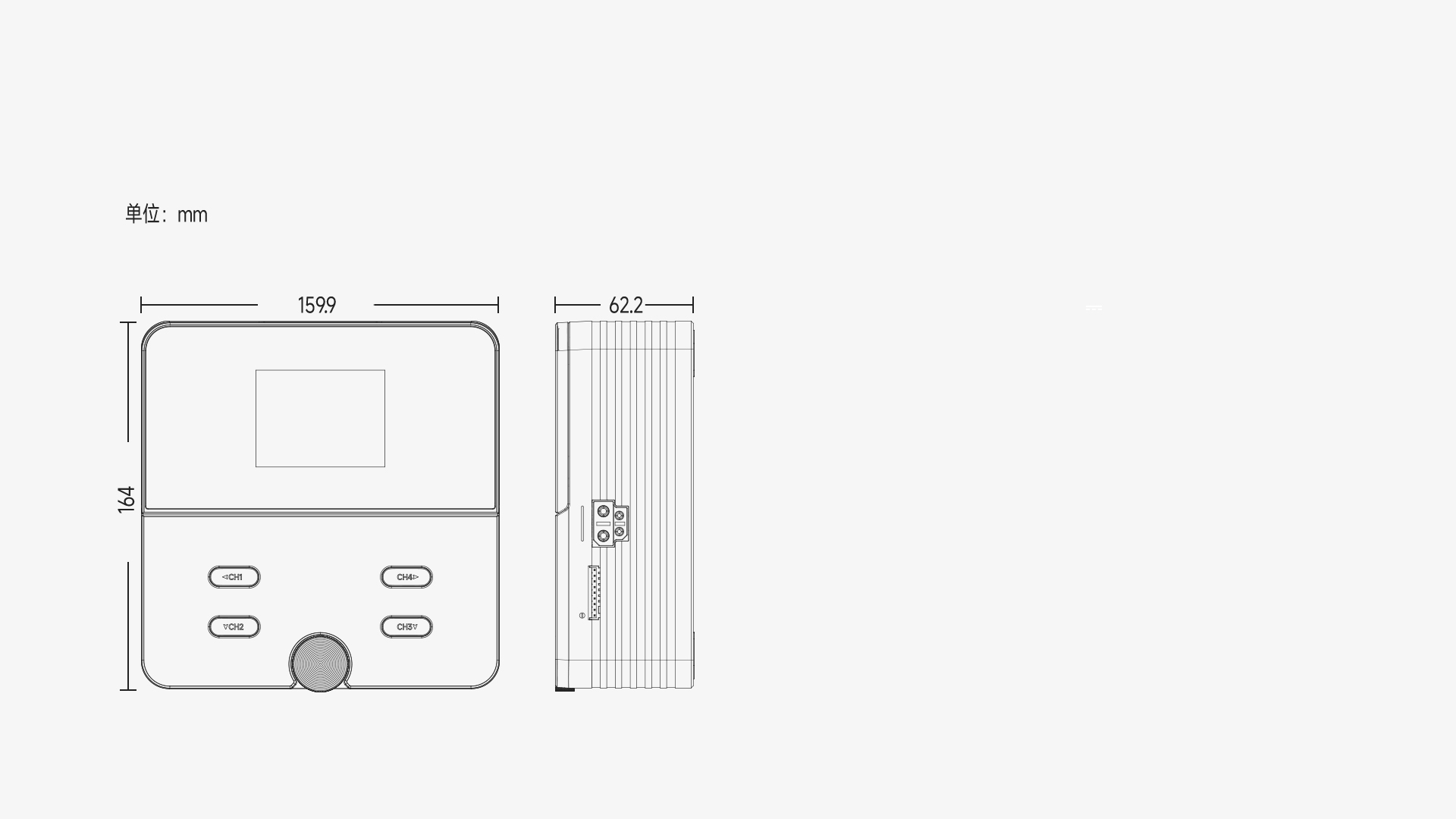

LiFe,LiIon,LiPo:1-8S; LiHv,ULiHv:1-7S; Pb:2-12S;NiMH/Cd:4-18S 1.5A / Maximum Value Per Cell 0-40℃ 164 x 159.9 x 62.2mm about 1.5Kg
LiFe,LiIon,LiPo:1-8S; LiHv,ULiHv:1-7S; Pb:2-12S;NiMH/Cd:4-18S 1.5A / Maximum Value Per Cell 0-40℃ 164 x 159.9 x 62.2mm about 1.5Kg
