Perfect Experience Without Limit

More powerful power 500W, ouput current 20A As always, compact and lightweight case design

ISDT SC-620

2.4″ IPS LCD

260,000-color screen, with a 178° viewing angle providing picture quality that is the most outstanding in its class. Even in direct sunlight conditions the image remains sharp and highly visible.

ISDT SC-620

scOsdeveloped just for smart charging

Colorful and bright UI design, optimized display information, makes setup & working status clearer to read, Quick & simple function menu design, reduces operating steps up to 80%, Supports online update with PC, optimizes operating system, and improves user experience constantly

ISDT SC-620

ARM 32bit Hi-speed CPU

ISDT SC-620

Hi converting efficiency

extreme power-volume ratio,Hi speed & efficiency synchronous power supply, active heat-sinking with hi-speed fan, make it possible to improve power by 300%

ISDT SC-620

One-key Shuttle Control

Tired to fumble and push with finger tips& Difficult press now is replaced with smooth and natural single shuttle control, One-key Shuttle Control, makes charging with SC-620 a joyful experience.

ISDT SC-620

Expedite USB Interface

Phones out of power? Don’t worry, connect to USB, which will provide 5V/2A for phone charge. No need to be troubled with ME without electricity

ISDT SC-620

Multi Language

Supports many different country languages, Truly local and barrier-free usage

ISDT SC-620

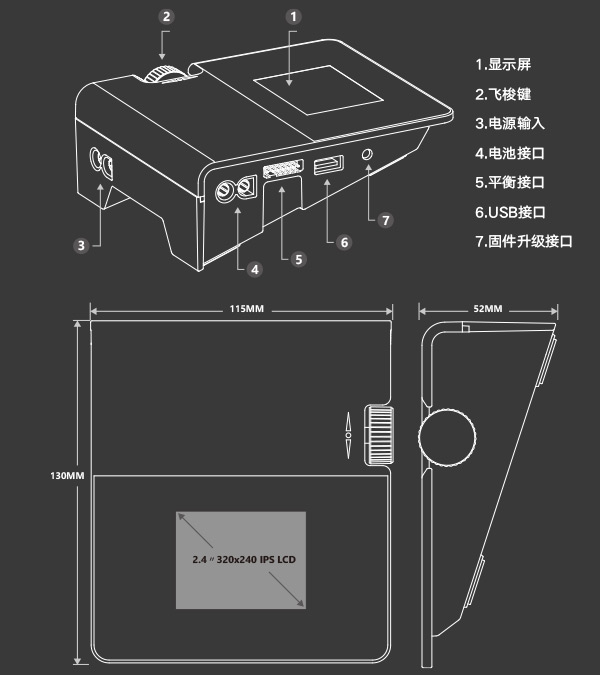

Design Innovation

With innovative design, the thinnest part is only 4mm. While the power output has been increased to an amazing 500W. XT-60 connectors have been used for both input and output terminals, making it safer and more convenient to connect to batteries. High-speed fans and a well-designed air duct not only ensure adequate cooling but also greatly reduce the size.

ISDT SC-620

Specifications

Input Voltage: DC 9-30V
Output Voltage: 0-30V
Charge Current: 0.1-20.0A
Discharge Current: 0.1-5.0A
Max Charge Capacity: 500W
Max Discharge Capacity: 15W
Balancing Current: 1000mA/cell
Balance Cells: 1-6S
USB Port: 2.1A/5V
Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 115x130x52 mm
Weight: 289g

OPERATION INSTRUCTION:

1. Connect the power supply , wait for self-testing to be completed
2. Set up charging parameters applicable to your battery through the display and speed shuttle key;
3. Enjoy
